Work Bar Strobe 12, Mini Light Bar 12 Inch, Amber/White, all in one package (1EA)
BUILTBRIGHT™ Work Bar Strobe 12 is a designed to incorporate a compact sleek design with the ultimate light output to meet SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with 78 flash patterns including flood strobe split and full flood pattern. It features ultra-bright latest generation LEDs under an all new wide defused lens with dual color options. The Work Bar Strobe 12 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with Cig plug switch and Permanent Dash Mount Switches, making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 12 is designed tough enough for a fit-and-forget purpose and has a 3-year warranty.
BUILTBRIGHT™ Work Bar Strobe 12 is a designed to incorporate a compact sleek design with the ultimate light output to meet SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with 78 flash patterns including flood strobe split and full flood pattern. It features ultra-bright latest generation LEDs under an all new wide defused lens with dual color options. The Work Bar Strobe 12 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with Cig plug switch and Permanent Dash Mount Switches, making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 12 is designed tough enough for a fit-and-forget purpose and has a 3-year warranty.
- Meets SAE J845 CLASS I, EMC R10 Requirements
- 360° strobe in white, amber and dual color
- 78 selectable flash patterns
- Integrated Cruise and Flood Mode
- Integrated steady burn and Strobe split mode
- Comes with dash mount switch and plug with on/off switch and flash pattern toggle
- Quick disconnect waterproof connectors allows for easy switching between temporary and permanent switch.
- Rugged Magnetic Mount and Permanent Stud Mount Bracket included
- Weatherproof IP69K rated
- 12 and 24 V DC compatible
- Sleek modern low profile design with 360º diffused lens
Information:
1x Dash Mount Switch| Attributes | |
| Average Current Draw@12VDC | 2 |
| Average Wattage | 24 |
| California Proposition 65 | No |
| Cig. Plug Included | Yes |
| Color Temperature | 1700, 6000 |
| Compliance | SAE J845 CLASS 1, ECE R10, SAE J845 CLASS 1, ECE R65, R10 |
| Country of Origin (Primary) | CN |

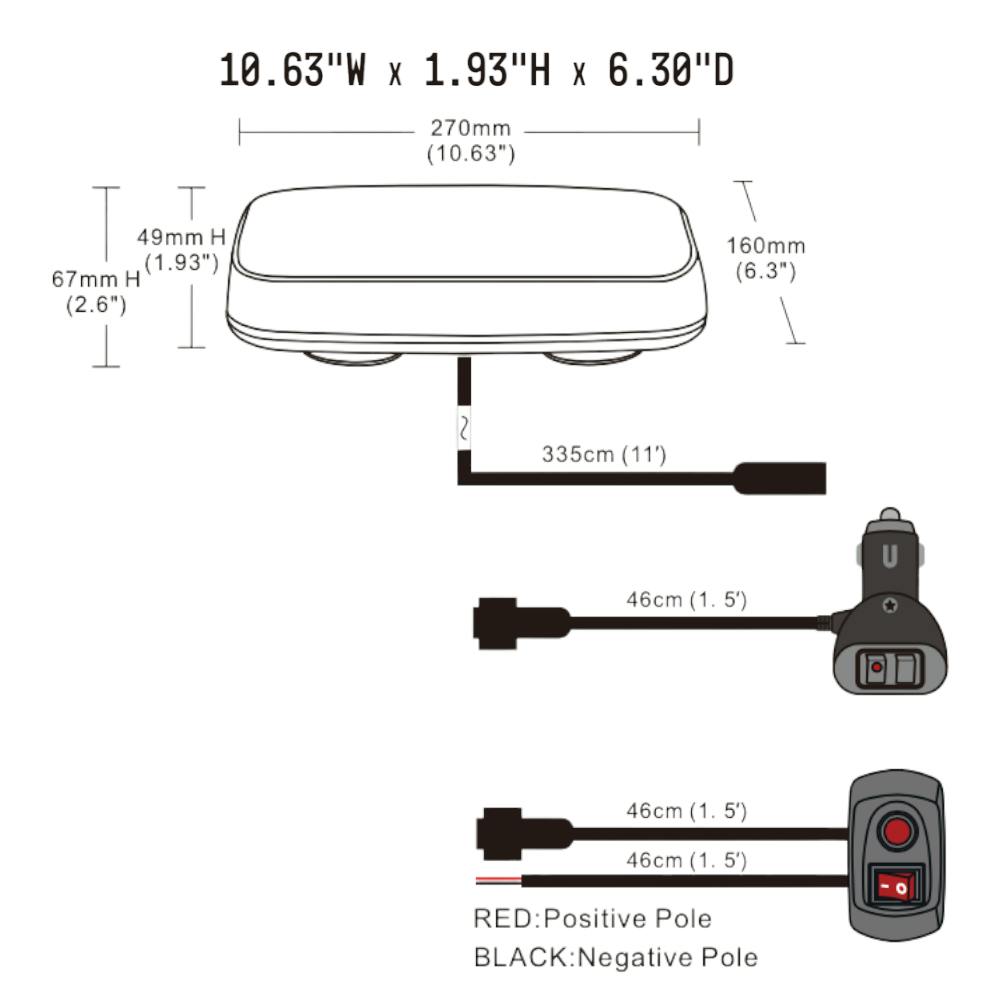

| Depth | 1.93 |
| Emission Code | Legal US |
| Flash Pattern | 78 |
| GTIN | 00793888981683 |
| Hazardous Material Code | N |
| Height | 2 |
| Housing Material | Cast Aluminum |
| IP Rating | IP69K |
| LED Color | Amber, White, Amber/White |
| LED Count | 120 |
| Length | 10.63, 11 |
| Lens Color | Clear |
| Lens Material | PC (Polycarbonate) |
| Life Cycle Status Code | Discontinued |
| Magnetic Feet Included | Yes |
| Maximum Amperage | 4 |
| Maximum Current Draw@12VDC | 4 |
| Maximum Wattage | 54 |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | 304 Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Operating Temperature | -40 to 149 |
| Permanent Mount Bracket | Yes |
| Permanent Switch Included | Yes |
| SDR Required Flag | N |
| Terminal Type | Circular Waterproof Connector |
| Universal Or Specific Fit | Universal |
| Voltage | 10-30V, 12 to 24 |
| Warranty Time | 5 |
| Width | 6.3, 6.5 |
| Wire Length | 11, 13 |
| Wire Quantity | 3 |
NEW! ARC Lighting BB6001A Work Bar Strobe 12, Mini Light Bar 12 Inch, Amber/White, All In One Package
Product Information
- Brand: ARC Lighting
- Product Number: BB6001A
