OnX6 White Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService(R) – Replaceable Lenses And Optics
- ClearView(R) – All The Light, Right Where You Need It
- MoistureBlock(R) – Waterproof, Rain Proof, Submersible
- CopperDrive(R) – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.
Information:
One Light BarApplication Summary:
Universal| Attributes | |
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,220 (High); 32,760 (Low) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color | Baja Amber |
| Country of Origin (Primary) | US |
| DES | OnX6 White Arc LED Light Bar |
| Depth (in.) | 4.29 |
| Description | Arc; Driving/Combo; Clear |
| EXT | OnX6 White Arc LED Light Bar (40 Inch; Driving/Combo; Clear) |
| GTIN | 00810031743032 |
| Harmonized Tariff Code (Schedule B) | 8541402000 |
| Hazardous Material Code | N |
| Height (in.) | 2.69 |
| Housing Color | White |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 40 |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Life Cycle Status Code | Available to Order |
| Light Pattern | Driving/Combo |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |

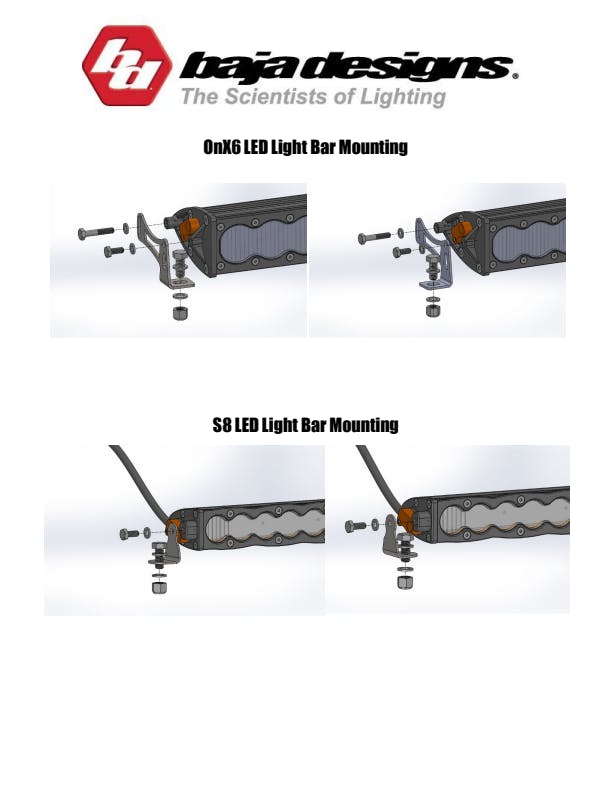

| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Overvoltage Protection | Built-In |
| Product Fitment | Universal |
| Product Information | One Light Bar |
| Product Type | OnX6+ 40 Inch Arc LED Light Bar |
| Size | 40 Inch |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| TLE | OnX6 White Arc LED Light Bar (40 Inch; Driving/Combo; Clear) |
| Universal or Specific | Universal |
| Wattage (W) | 340 (High); 284 (Low) |
| Weight (lbs.) | 15.05 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Baja Designs 524013WT OnX6 White Arc LED Light Bar
Product Information
- Brand: Baja Designs
- Product Number: 524013WT
