46mm Monotube Shock Absorber

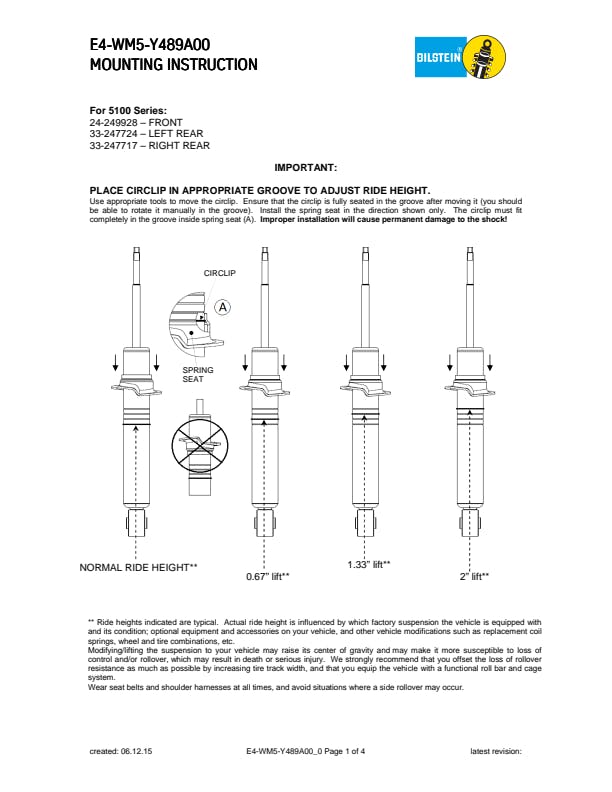

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Application Summary:
| Year |
Make/Model |
| 1996-2004 |
Toyota Tacoma |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Body Design |
Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) |
46mm |
| Boot Included |
Black Straight |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
13.86 |
| Collapsed Length (MM) |
352.0 |
| Country of Origin (Primary) |
MX |
| Emission Code |
Legal US |
| Extended Length (IN) |
18.66 |
| Extended Length (MM) |
474.0 |
| Finish |
Zinc Plated |
| GTIN |
00651860764580 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 14.2mm |
| PartType |
Shocks / Struts |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 5100 (Ride Height Adjustable) |
| Spring Seat Included |
Yes |
| Upper Mount Type |
Stem |
