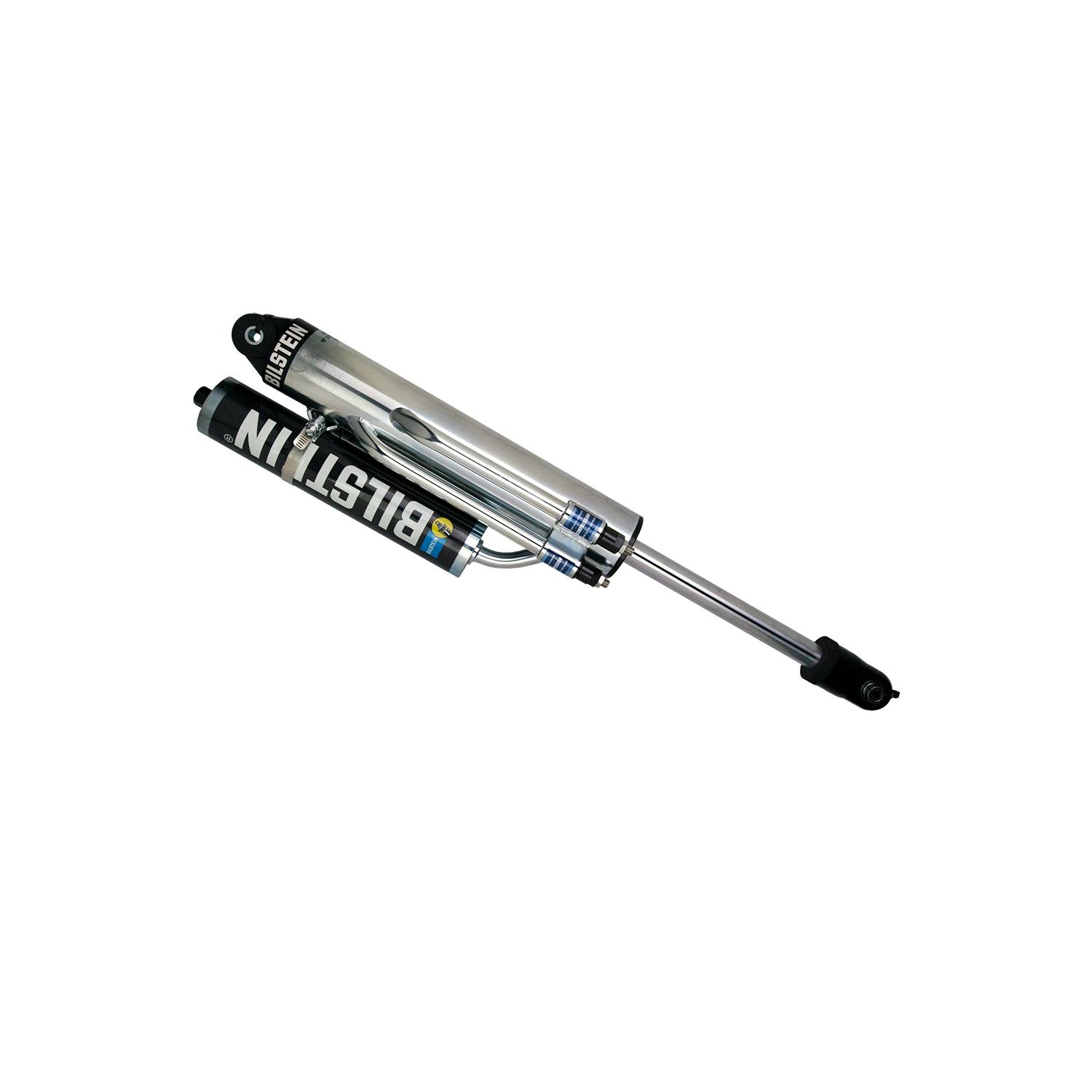

70mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
Application Summary:
| Year |
Make/Model |
| No |
Applications |
| Attributes |
| Body Design |
4-Tube Bypass Screw Top |
| Body Diameter (ID) |
70mm |
| Boot Included |
N/A |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
19.50 |
| Collapsed Length (IN) Rounded |
20 |
| Collapsed Length (MM) |
495.3 |
| Compression @0.52m/s |
Custom |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
29.50 |
| Extended Length (IN) Rounded |
30 |
| Extended Length (MM) |
749.3 |
| Finish |
Zinc Plated |
| GTIN |
00651860766485 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye .5x1.5in |
| Mount Type |
Eye-to-Eye |
| Optional Reservoir Clamp |
N/A |
| PartType |
Shocks / Struts |
| Position |
Right |
| Rebound @0.52m/s |
Custom |
| Reservoir |
Yes |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Motorsports |
| Series |
M 9200 (Bypass) |
| Spring Seat Included |
No |
| Upper Mount Type |
Eye .5x1.5in |
| Warranty Time |
3 |
