CURT 59236 Weather-Resistant Multi-Function Splice-in Trailer Tail Light Converter Kit; 4-Pin Wiring Harness

---

Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements. The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year. The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle. The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board. This produces lower resistance, reduced heat generation, longer life cycles and higher reliability. The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring. The converter is controlled using a microprocessor that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation. The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination. It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector. This package includes a powered converter wiring kit #55152 and four snap locks for faster, more secure splicing.

• Converts 2-Wire 3-Wire Or Pwm St System To 2-Wire Trailer Light
• Provides Improved Overload Short-Circuit And Thermal Protection
• Low-Voltage Operation Allows Function Down To Seven Volts

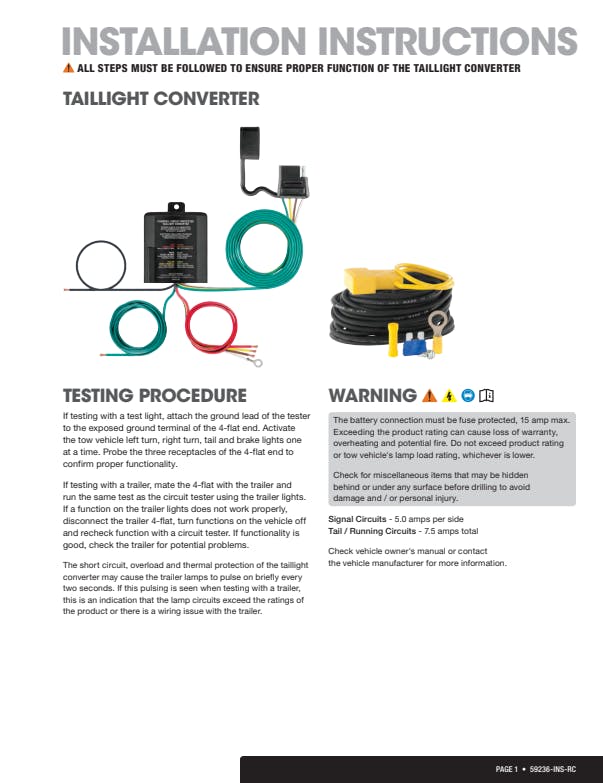

• Color-Coded Wires w/Wiring Guide For Easier Installation
• Snap Locks Included For Fast Secure Splicing
• Dust Cover Included To Keep Connector Clean When Not In Use
• Made In USA
• Enclosure Significantly Increases Water And Vibration Resistance
• 4-Way Flat Connects Tail Lights Brake Lights And Turn Signals
• Constructed w/Smt Circuitry For Better Performance And Durability
• Microcontroller Senses Current To Rapidly React To Overload

---

Information:

Multi-Function Taillight Converter Kit; Converts 2-wire, 3-wire or PWM ST system to 2-wire trailer light wiring; Potted enclosure significantly increases water and vibration resistance; 4-way flat output connects tail lights, brake lights and turn signals; Constructed with SMT circuitry for better performance and durability; Microcontroller senses current to rapidly react to overload; Provides improved overload, short-circuit and thermal protection; Low-voltage operation allows function down to seven volts; Color-coded wires with wiring guide for easier installation; Included wiring kit allows for a convenient connection to the vehicle battery; Snap locks included for fast, secure splicing; Dust cover included to keep connector clean when not in use

---

Application Summary:

Year	Make/Model
1998-2004	Audi A6
2006-2014	Audi A6
1998-2004	Audi A6 Quattro
2006-2011	Audi A6 Quattro
2009-2011	Audi Q5
2010-2015	Audi Q7
2000-2005	Audi TT Quattro
2009-2010	Audi TT Quattro
2004-2009	BMW X5
2013-2015	Chevrolet Malibu
2012	Chevrolet Sonic
2009-2010	Mercedes-Benz C300
2008-2010	Mercedes-Benz C63 AMG
2011	Mercedes-Benz E350
2014	Mercedes-Benz E350
2010-2011	Mercedes-Benz GLK350
2006-2010	Mercedes-Benz R350
2006-2007	Mercedes-Benz R500
2009	Mercedes-Benz S550
2002-2015	Mini Cooper
2009-2017	Volkswagen CC
2010-2011	Volkswagen Golf
2006-2010	Volkswagen GTI
2009-2011	Volkswagen Tiguan
