CURT 60601 OEM Puck System 2-5/16-Inch Gooseneck Ball; Fits Select Ram Trucks; 30;000 lbs
Outfitting your pickup to tow a heavy-duty flatbed or livestock trailer is easy with the CURT OEM puck system gooseneck ball. Like our OEM puck system safety chain anchors, this gooseneck ball utilizes the puck system built into certain pickup trucks today with the towing prep package. It features a patented installation system, operating with a simple quarter-turn latch lock for ease of use and a secure mount. Retention balls, built into the shank, keep the gooseneck ball fixed into the receiver hole and keep your trailer locked on tight. It provides a ball diameter of 2-5/16 in. and has a gross trailer weight capacity of 30,000 lbs. It also comes with a durable chrome finish and meets U.S. V-19 specifications for safety. This particular OEM puck system gooseneck ball is compatible with select Ram 2500 and 3500 pickups with the truck bed puck system. It can also be used in our OEM-style Ram hitches. It is not designed to fit any other gooseneck ball holes. The ball can be purchased as a standalone item or as part of a complete kit (#60618) that also includes the OEM puck system safety chain anchors, a rubber hole cover and a durable storage case.
- Fits The Ford Or Ram Puck System
- Compatible w/Curt OEM-Compatible Ram Hitches PN[60613 And 60614]

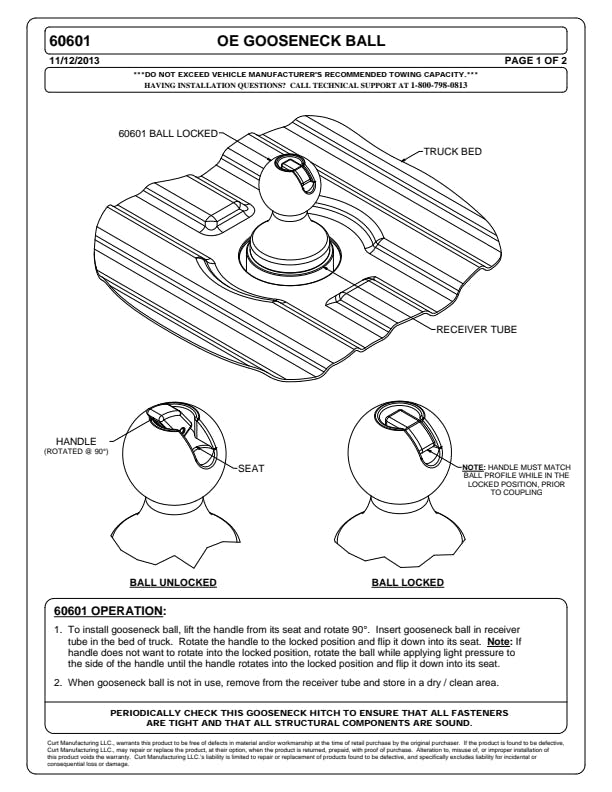

- Installs Easily w/Quarter-Turn-Latch Locking System

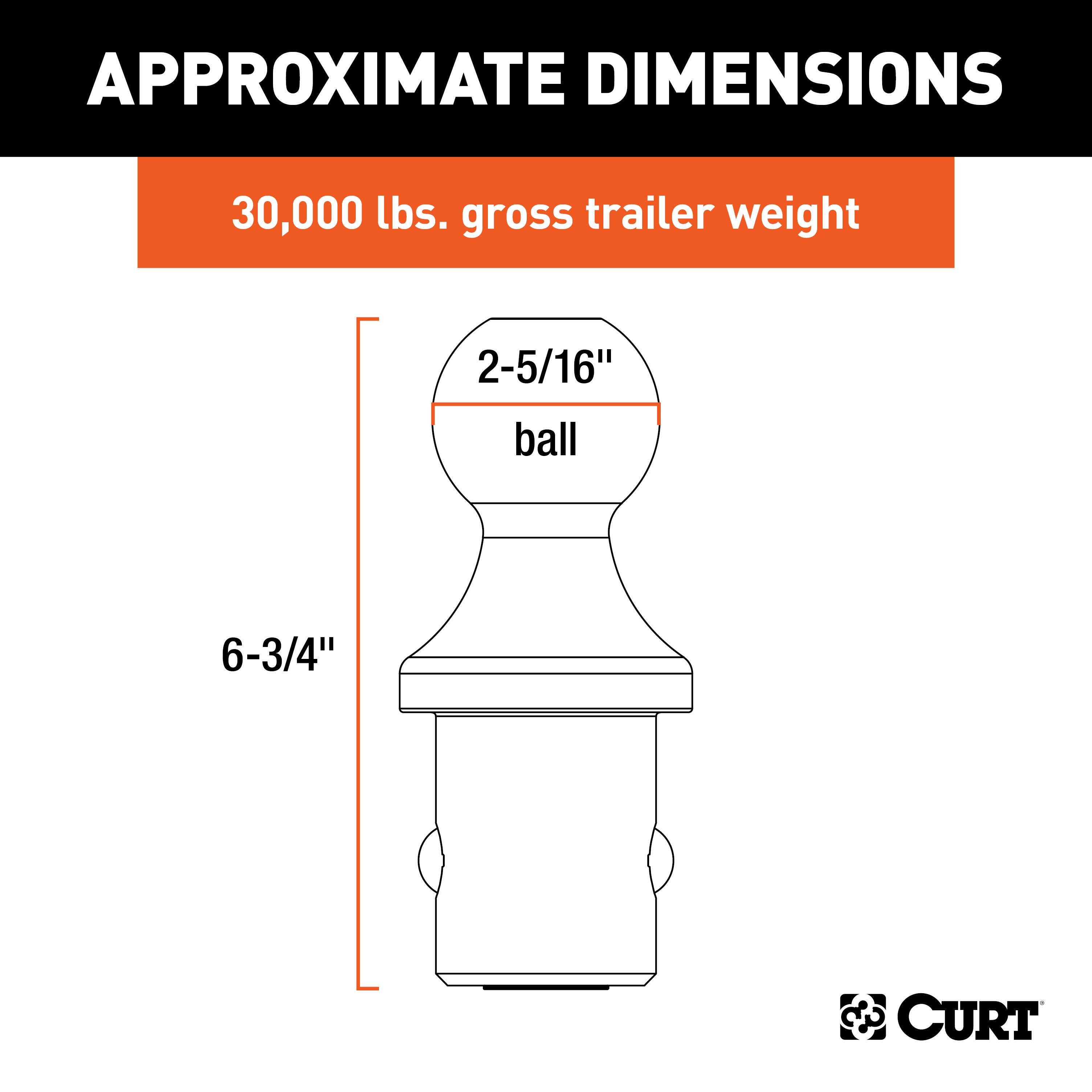

- 2 5/16 In. Diameter Ball Couples To Most Gooseneck Trailers
- Retention Balls Keep The Shank Fully Locked Into The Hitch
- Constructed From Strong Machine-Forged Steel Alloy
- Protected By A Polished Chrome-Plated Mirror Finish
- Tested For Safety To Meet U.S. Vesc V-5 Specifications
Information:
Fits Ram pickups with the OEM truck bed puck system; Also compatible with CURT OEM-style Ram hitches #60626 and #60614; 2-5/16 gooseneck ball installs easily with quarter-turn latch system; Retention balls keep the shank fully locked into the hitch; Constructed from strong, machine-forged steel alloy; Protected by a polished chrome-plated mirror finish; Tested for safety to meet U.S. VESC V-19 specifications; Limited lifetime warranty (one-year finish, one-year parts); OEM Puck System 2-5/16 Gooseneck Ball, Ram (30K)
Application Summary:
| Year |
Make/Model |
| CURT |
60601 OEM Puck System 2-5/16-Inch Gooseneck Ball, Fits Select Ram Trucks, 30,000 lbs |
| Attributes |
| ASIN |
B00I3O4QRI |
| Ball Diameter |
2.3125 in., 2-5/16 IN |
| Ball Diameter (in.) |
2.3125 |
| Ball Shank Diameter |
N/A |
| Ball Shank Diameter (in.) |
N/A |
| California Proposition 65 |
Yes |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
CN |
| Emission Code |
Legal US |
| Finish |
Chrome |
| Finish - XA |
Chrome |
| GTIN |
00612314606016 |
| Gooseneck Hitch Type |
Ball |
| Gross Load |
7500 lbs. |
| Gross Load (lbs.) |
7500 |
| Gross Trailer Weight |
30000 lbs. |
| Gross Trailer Weight (GTW) |
30,000 LB |
| Gross Trailer Weight (lbs.) |
30000 |
| Gross Trailer Weight(GTW) |
30,000 LB |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Item Class - XA |
OBS |
| Item Height - XA |
3.250 |
| Item Length - XA |
7.750 |
| Item Width - XA |
3.250 |
| Life Cycle Status Code |
Available to Order |
| Long Description |
Gooseball |
| Master Case Height Inches - XA |
0.000 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
2.737 |
| Rate Class - XA |
70.0, 100.0 |
| Retail Height - XA |
8.000 |
| Retail Length - XA |
3.000 |
| Retail Width - XA |
3.000 |
| Rise |
1/2 IN |
| SDR Required Flag |
N |
| Sales Family Code - XA |
GOOSE |
| Sales Family Description - XA |
GOOSENECK |
| Sales Group Description - XA |
GOOSENECK PART |
| Shank Length |
N/A |
| Shank Length (in.) |
N/A |
| Shipping Weight - XA |
3.737 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Tongue Weight (TW) |
7,500 LB |
| Tongue Weight(TW) |
7,500 LB |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Vertical Load |
7500, 7,500 LB |
| WC Tongue Weight |
7500 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Time |
1 |
