J-Krawl: Delivers high articulation, full adjustability, and extreme durability for on and off-road use with J-Flex upper and lower control arms and FOX shocks.

---

The hardcore rock crawling suspension choice for your 4-Door Diesel Jeep Wrangler JL is a J-Krawl 3.5 lift kit. The complete system is designed for maximum articulation, strength and adjustability. Components include J-Flex Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved FOX 2.0 IFP Performance Series IFP shocks, an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep’s factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

• Front/Rear Dual Rate Coil Springs designed for great ride quality and improved performance across any terrain

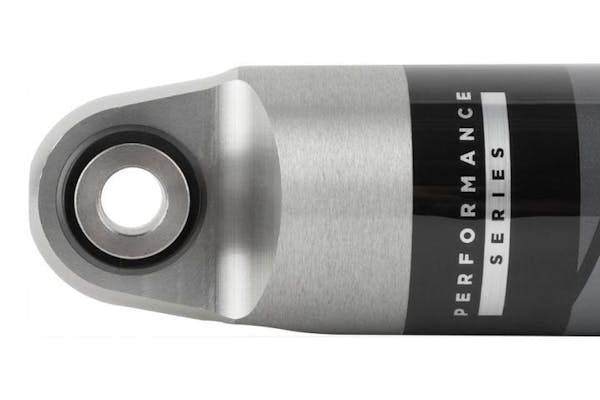

• Front/Rear FOX 2.0 Performance Series IFP Shocks specifically valved for this suspension system for improved performance on and off-road
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased off-road articulation
• Front/Rear J-Flex Upper and Lower Control Arms for improved strength and caster correction
• Front/Rear Bump Stop Extensions to properly limit suspension up travel

---

Information:

Rubicon Models (all kits): Tire: 37x12.50; Wheel: 17x9, 18x9, 20x9; Backspacing: 5; Non-Rubicon Models (all kits): Tire: 35x12.50; Wheel: 17x9, 18x9, 20x9; Backspacing: 5; Other tire/wheel sizes can be used, however may require additional modifications.

---

Application Summary:

Year	Make/Model
2020-2022	Jeep Wrangler
