ORACLE Lighting H4 - VSeries LED Headlight Bulb Conversion Kit
The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.
The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.
- Physically matches original bulb for OEM fitment and easy DIY installation
- Lumens: 3,600LM/ Set
- Power Draw: 17W/ Bulb
- Efficacy: >100lm/W
- Industry-Leading Efficacy Ratio
- FIRST 6-Volt DRL Compatible LED Bulb Available

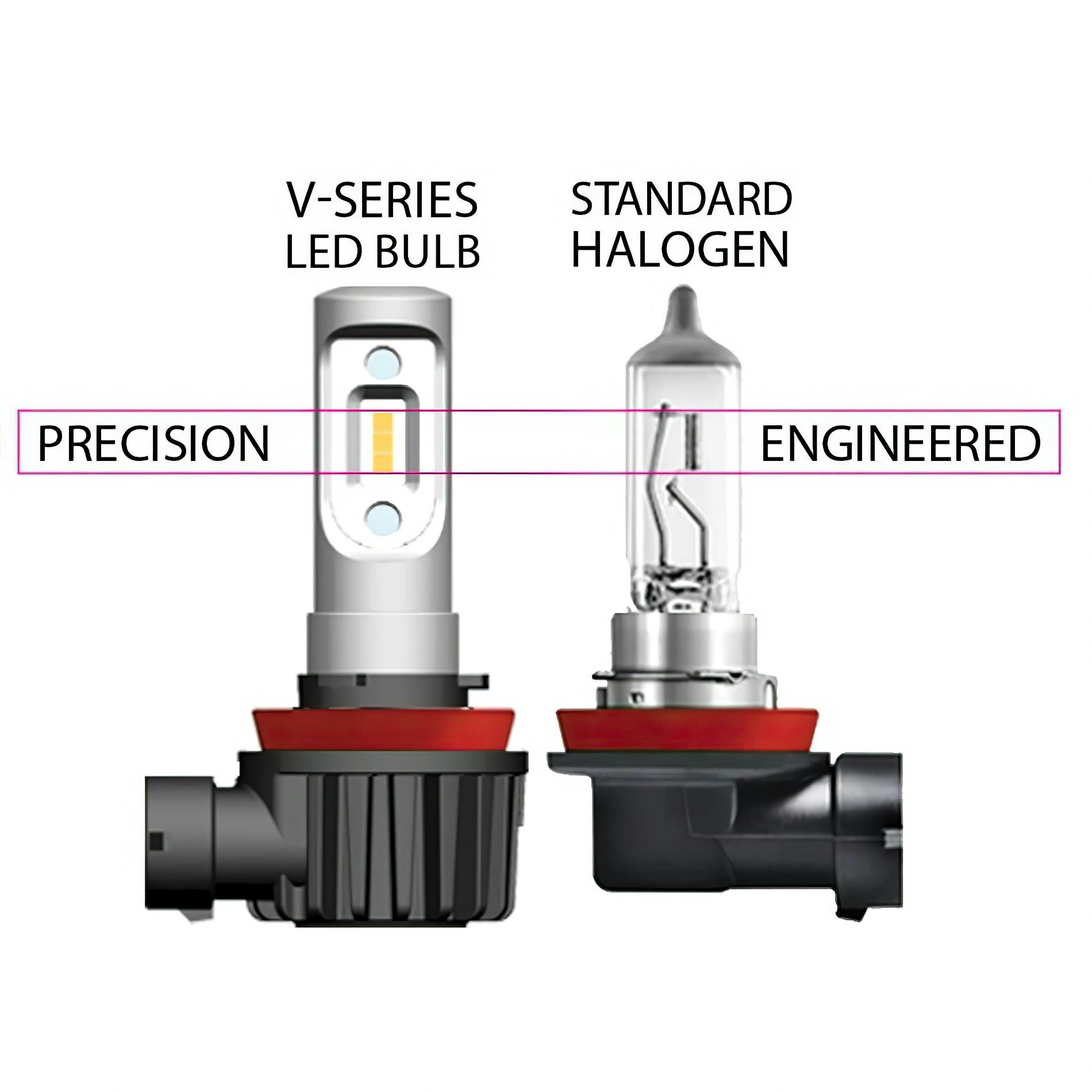

- LED Bulb features Precision Filament Geometry for no-Glare Illumination
- No Fan, Head-Sink, or other cooling system
- Color Temp: 6000K
- Input Voltage: 6-32V DC
- DRL Compatible: YES
Information:
6,000K| Attributes | |
| Add-On | N/A |
| Brightness | 3,600 Lumens |
| Bulb Type | H4 |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Color | 6,000K |
| Country of Origin (Primary) | US |
| DRL Compatible | Yes |
| Efficacy | 100lm/W |
| GTIN | 00810030395874 |
| Harmonized Tariff Code (Schedule B) | 8512200000 |
| Hazardous Material Code | N |
| Kelvin Temperature | 6000K |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| Power Draw | 17W |
| SDR Required Flag | N |
| Voltage | 6-32V DC |
| Warranty Time | 1 |
Oracle Lighting V5231-001 H4 - VSeries LED Headlight Bulb Conversion Kit
Product Information
- Brand: Oracle Lighting
- Product Number: V5231-001
