Offers the ability to connect the Tow-Pro( ) Elite or Tow-Pro( ) Classic electric brake controller directly to your Ford or Lincoln factory towing package connector behind your vehicle dash.

---

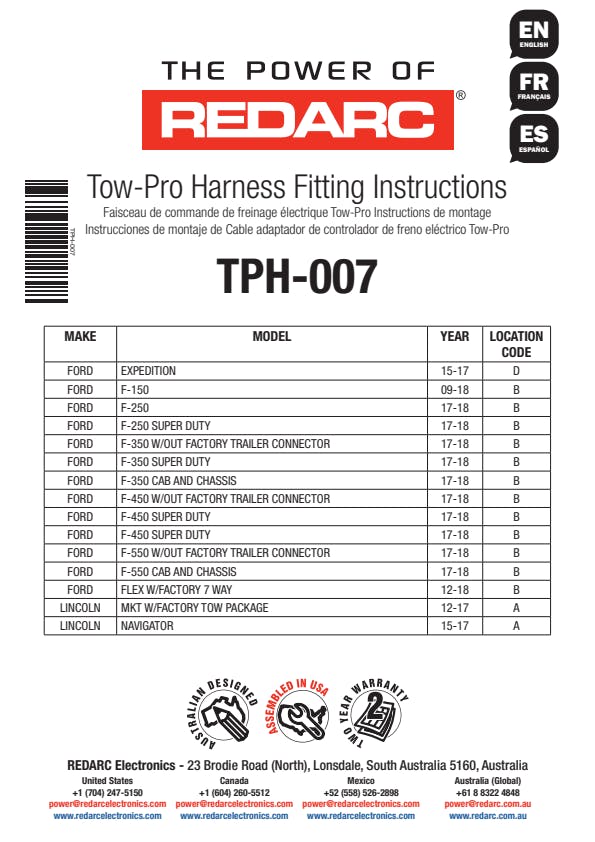

The REDARC Tow-Pro TPH-007 wiring harness offers the ability to connect the Tow-Pro( ) Elite or Tow-Pro( ) Classic electric brake controller directly to your Ford or Lincoln factory towing package connector behind your vehicle dash. The Tow-Pro Wiring Harness is available in multiple configurations to suit a large variety of Ford and Lincoln models and contains fitting instructions and the loom with compatible connector. Mating harness adaptors are also available allowing the user to install the Tow-Pro( ) using other manufacturers existing custom wiring installations. The Tow-Pro Harness allows you to connect to the Tow-Pro Elite electric brake controller to the vehicle's factory fitted connector with an easy plug and play design. Simply plug one end of the harness to the electric brake controller connector and then plug the other end to the factory fitted connector behind the vehicle dash. These harnesses will also connect to the Tow-Pro Classic with a small modification. The Tow-Pro Classic does not have a mating connector and requires bare wires to be inserted into the brake controller instead.

• Provide easy plug and play installation of the Tow-Pro Elite and Tow-Pro?Liberty models.

---

Application Summary:

Year	Make/Model
2015-2016	Ford Expedition
2011-2014	Ford F-150
2016-2017	Ford F-150
2017-2018	Ford F-250 Super Duty
2017-2018	Ford F-350 Super Duty
2018	Ford F-450 Super Duty
2017	Ford F-550 Super Duty
2012-2013	Ford Flex
2015	Ford Flex
2017-2019	Ford Flex
2007-2018	GMC Sierra 1500
2001-2005	GMC Sierra 2500 HD
2020-2022	GMC Sierra 2500 HD
2001-2005	GMC Sierra 3500
2018-2021	Honda Accord
2016-2021	Honda Civic
2013-2014	Lincoln MKT
2017	Lincoln MKT
2019-2020	Subaru Ascent
2016-2020	Subaru Crosstrek
2012-2020	Subaru Forester
2015-2020	Subaru WRX
2015-2018	Subaru WRX STI
2013-2015	Subaru XV Crosstrek
