24 Volt Electric; 1200 Pound Line Pull Capacity; Without Rope; Without Fairlead; Without Remote; 216:1 Gear Reduction; Automatic Cone Brake
The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately.
The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately.
- The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our prov
- Powerful Permanent Magnet DC Motor With Robust Sealing
- Proven 3-Stage Planetary Gear Train
- Permanent Grease Lubrication
- Automatic Cone Brake That Holds Full Rated Load
- Compact Midsize Frame With Integrated Tie Bars For Easy Installation
- Limited 1 Year Warranty
Information:
Designed For Increased Rope Capacity; Permanent Magnet Motor| Attributes | |
| California Proposition 65 | Yes |
| Country of Origin (Primary) | US |
| GTIN | 00012748852506 |
| Harmonized Tariff Code (Schedule B) | 8425110000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Line Speed At Max Pull | 14.6 Feet Per Minute At 1200 Pound |
| Max Amp Draw | 45 Amp Draw At 1200 Pound |
| Motor Type | Permanent Magnet |
| NAFTA Preference Criterion Code | B |
| Rated Single Line Pull (lbs.) | 1200 |
| Recommended Use | Industrial |
| SDR Required Flag | N |
| Type | Electric |
| Voltage | 24 Volt |
| Warranty Time | 12 |
| Winch Rating | 1200 Pound |

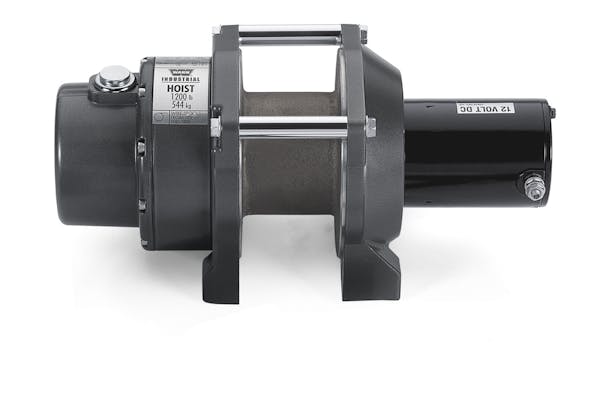

Warn 85250 DC1200 MF Industrial DC Hoist
Product Information
- Brand: WARN
- Product Number: 85250
